Low clearance
3.75 in. minimum, aluminum body, dual pumps. Rolls under lower cars. Still must reach the specified lift point.
Car setup / garage maintenance
Choose the jack setup by clearance and lift range.
Jack and stands are one decision. The jack must reach the lift point; the stands must hit the support points at a rated height on a level surface. If either piece fails that fit check, stop before lifting.
Best fit
Vehicle and floor first.
More SUV range
Base jack: 5-7/8 to 17-1/4 in. at 3 tons. With the SUV adapter, the jack reaches 20-7/8 in. at 2.5 tons.
Support pair
Matched stands, 11-1/4 to 16-3/4 in. They hold the load after the jack lifts. They do not replace the jack.
Spec table
Numbers that change whether the job is possible.
| Decision factor | BIG RED T83006 | ARCAN A20019 | BIG RED T43002A |
|---|---|---|---|
| Role | Floor jack | Floor jack | Jack stands, 1 pair |
| Rated capacity | 3 tons without the SUV adapter; adapter setup is 2.5 tons | 3 tons / 6,000 lb | 3 tons / 6,000 lb per listed pair |
| Minimum height | 5-7/8 in. without adapter | 3.75 in. | 11-1/4 in. |
| Maximum height | 17-1/4 in. without adapter; 20-7/8 in. with the 2.5-ton SUV adapter | 18 in. | 16-3/4 in. |
| Construction / feature | Steel trolley; single pump; overload bypass; extra saddle listed on Amazon | Aluminum; dual pump pistons; reinforced lift arm; bypass and overload valves | Steel; double lock; ratchet bar; wide pyramid base |
| Best storage question | Will the long body and extra saddle stay together? | Can the lighter body and long handle live near the work area? | Can both stands stay matched and dry? |
Amazon options
Jack plus matched stands.
Buying through our Amazon links costs you nothing extra and helps us keep DadSetup free to read. As an Amazon Associate we earn from qualifying purchases.
Floor jack

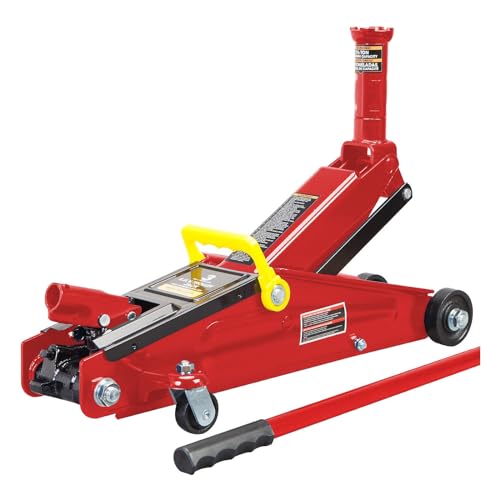

BIG RED T83006
Steel trolley, 5-7/8 in. starting height, extra saddle listed for SUV work. Torin manual: 3-ton base range 5-7/8 to 17-1/4 in.; SUV adapter 2.5 tons to 20-7/8 in.
Verify which adapter ships and which rating applies before lifting.
Floor jack

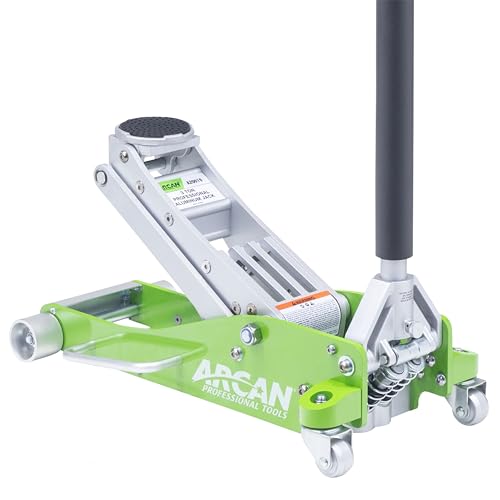

ARCAN A20019
Low-profile pick: 3.75 in. minimum, 18 in. maximum, dual pumps, aluminum 3-ton body.
3-ton label does not guarantee fit at every SUV lift point. Measure and read the service manual.
Support pair

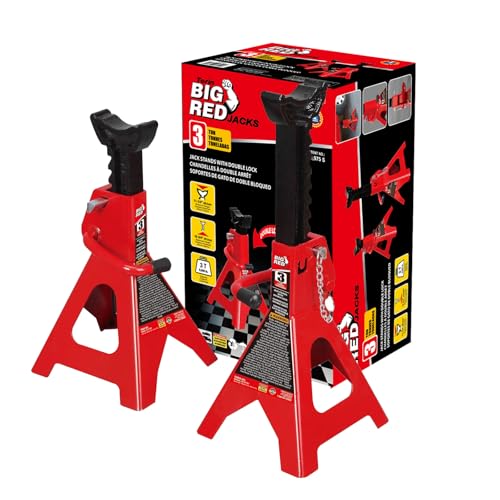

BIG RED T43002A
Matched pair, double locking, 11-1/4 to 16-3/4 in. range, 3-ton listed capacity.
Rating and height do not guarantee fit at your support points or surface.
Garage routine
Use a repeatable lifting setup
- Service manual lift points.Weight, clearance, model restrictions.
- Level hard floor.OSHA requires sufficient rating and firm foundation. Soft or sloped ground changes the setup.
- Measure reach.Jack min/max versus lift point. Capacity cannot fix a jack that does not reach.
- Match stands.Pair at support points, same stable surface, centered contact.
- Inspect and store together.Manuals, handle, pins, pads. Remove damaged gear from service.
FAQ
Common questions
Is 3 tons enough for an SUV?
Capacity alone is not enough. Check manual, lift point, jack height range, and support plan.
Floor jack or bottle jack for a garage?
Floor jack usually wins for rolling under the car and lower profile. Bottle jack can suit taller vehicles when base and reach fit.
Can the floor jack stay under the vehicle?
Lower onto matched stands per the manuals. Do not treat the jack as long-term support.
